Hybrid Foils-boost | foil assist

Hybrid Foils-boost | foil assist

Regular price £2,395.00 GBP
Regular price Sale price £2,395.00 GBP
Promotional Offer Sold out

All Hybrid foil systems are supplied with 1 set of mast clamps, please select your appropriate mast clamp from the list provided, if you require additional mast clamps for multiple masts or multiple positions on tapered masts these can be found in the accessories page and can be added to your basket prior to checkout.

Additional Batteries

This is the lightest version of the Hybrid Foils foil assist product range and is particularly suited to SUP foiling, low wind wing foiling, prone foiling, and down winding. The powered assist also enables you to drive out to access more remote wave locations.

The Hybrid Foils boost foil assist system operates with a 28 - 32 V lithium battery. The full system weighs just 3.7kg.

This is equivalent to the FD plus unit.

All systems supplied with aluminium propellers. Also a standard or upgraded controller.  The Hybrid foils-boost as standard has a smaller profile controller with a higher trigger position, which is well suited to offer upper handle positioning when fitted to a paddle for SUP foiling, whereas the upgraded controller offers additional benefits of a larger colour screen, GPS (showing live speed and distance covered), multi-level power options and additional display information.

Peak Thrust 26 kg.

NOTE; All prices shown do not include local Taxes and duties

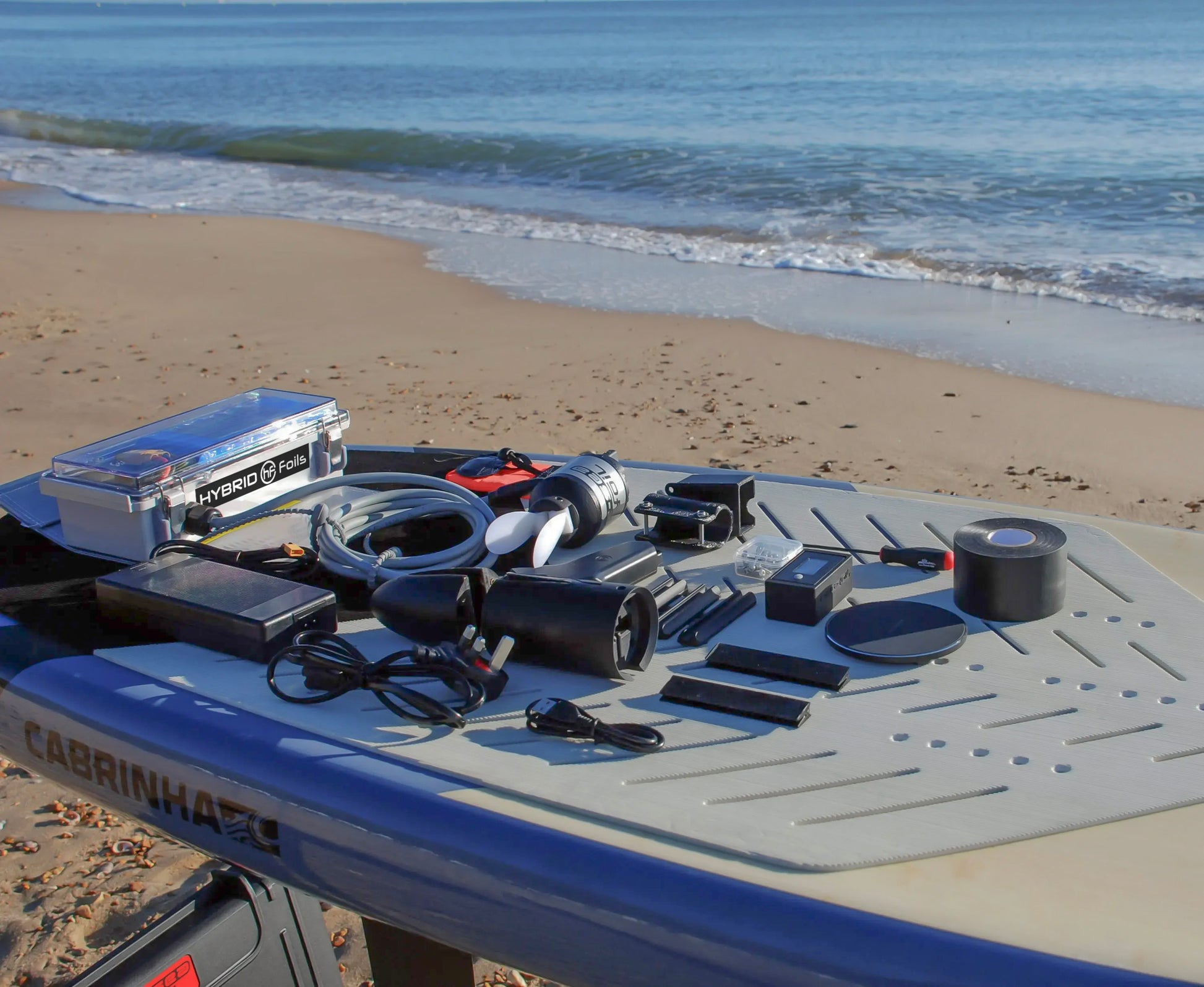

System Contents

  • Battery and electronics enclosure
  • Lithium battery pack
  • Battery LiPo-safe charge bag
  • Lithium battery charger and mains lead
  • Motor - Complete with propellor hub and motor mount
  • Pair of propellor blades
  • e-sea-foil mastgrasp clamp nose and tail sections
  • e-sea-foil mastgrasp insert (mast specific Front and Rear)
  • Wireless controller with charger, wrist strap/float and USB cable
  • Paddle mount
  • Battery State of Charge monitor
  • 3 x Rubber cable guides
  • 3 x Board cable mount pads
  • Box containing fixing set (including spare fixings)
  • Cable tape reel
  • 2 x Silicone cable ties
  • Hex key driver

Technical Information

The hybrid foils-boost system uses the revolutionary tailor-made e-sea-mastgrasp, providing interchangeable connections with a secure and streamlined fit to your hydrofoil mast.

Hybrid foils-boost operates with a 28-32V battery system, which hosts a battery enclosure of just 7.5cm tall, and the full system weighs 3.7kg.

Hybrid foils-boost has a smaller profile controller with a higher trigger position, which is well suited to offer upper handle positioning when fitted to a paddle for SUP foiling.

While the Hybrid foils-foil system can be used for e foiling (when used with appropriate foils) it must be appreciated that the system is designed as a lightweight retrofit foil assist. It is not a full e foil and has limitations due to battery size and method of cooling of the electronics.

A dedicated e foil has a significantly larger and heavier battery (circa 8-10 times ), with a much greater capacity and operating voltage.

The system should not be used for extended periods at 100% throttle, if used at high throttle for extended durations the electronics automatically reduces power to keep within the operating temperature parameters of the system.

Use of high throttle percentages for extended durations will significantly reduce run time due to high power consumption, the figures stated for surf time are based on short bursts to push you onto a wave, these do not reflect e foil time!
